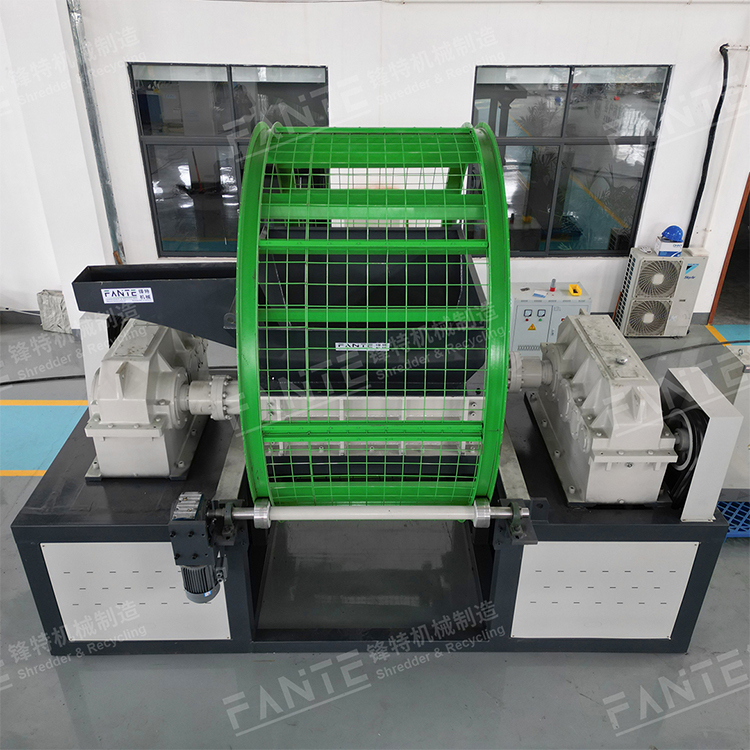

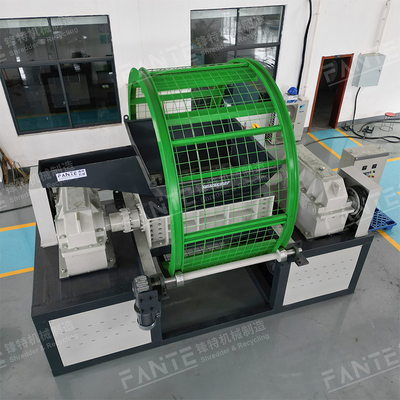

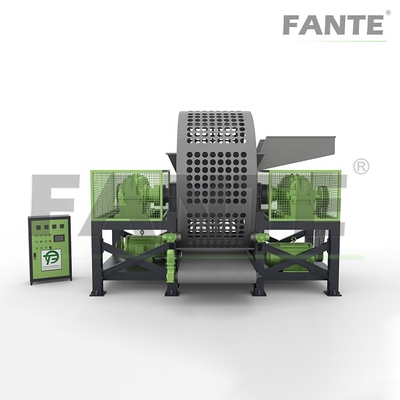

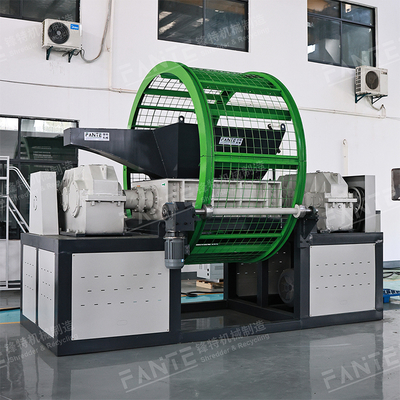

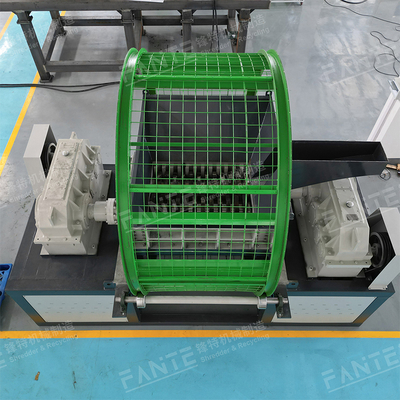

Automatic Shredder for Waste Tyre & Scrap Car Tire Recycling

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Fante
Model Number:	FTHS-T

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Gearbox, Motor, Bearing, Gear	Voltage:	380V/60HZ/3PH
Dimension(lwh):	2600720500mm	Warranty:	1 Year
Key Selling Points:	Automatic	Weight (kg):	1400
Power:	15*2	Application:	Recycle Waste Tire
Name:	Shredder	Usage:	Plastic/wood/rubber/Tire/metal And Etc.
Warranty:	24 Months	Color:	Client's Requirements
Crushing Material:	Types Of Waste Tire	Blades Material:	9CrSi/D2/SKD-11/ Customized
Other Name:	Double Shaft Tire Shredder	Final Product:	1-10 Cm
Condition:	New

The tire shredder is mainly used for pre shredding waste tires in the tire line. After passing through a sieve, appropriate sized tire fragments are screened and processed in the next step. Suitable for different types of waste tires, we can provide you with the best solution according to your different tires.

Materials: The whole machine is made of the best material, the body is welded with all steel, and the main shaft of the blade is
made of imported high-strength alloy, which has high strength and higher wear resistance.

Features: It is not easy to deform, has stronger bearing capacity, longer service life, is stable and durable, and has low speed.
It uses a hard tooth gearbox transmission system as the transmission structure, with large output torque, stable operation, and
higher efficiency. And it has low noise and energy consumption. It can be operated 24 hours a day.

Process: The integrated case is processed and processed by high-precision machine tools, with high mechanical strength and
accuracy. Advanced simulation software shall be used to ensure the mechanical structure of integral or combined blade, so as to
avoid fracture and disassembly

Function: It can handle a variety of different materials. No matter whether the feed is large pieces of hard plastic or heavy
tires, the machine can easily cut them into small pieces. And the crushing particle size is controllable, and the material
compatibility is wide.

◼︎ Crusher body The main body of the equipment is welded with wear-resistant steel plates to eliminate stress and processed as a whole, ensuring the stability of the equipment under long-term heavy loads. ◼︎ Moving knife/fixed knife The material of the moving blade is made of special alloy tool steel forged and processed by machine, with multiple heat treatments and low-temperature freezing heat treatment techniques. The overall toughness and hardness are consistent and can be repeatedly repaired for use, ensuring cutting performance and service life. The fixed tool adopts a hook type installation, optimizing the tool replacement function, making tool maintenance and replacement more convenient. ◼︎ Bearings/Seals The bearing seat adopts a split and detachable type, which can quickly remove components such as moving knives, fixed knives, bearings, etc. It is easy to maintain and replace cutting tools, and the sealing structure effectively blocks the contact between broken objects and grease. When handling liquid materials, it can also protect bearings and gears.

◼︎ Knife shaft Using heavy-duty steel for processing and refining, and more reasonably cooperating with cutting tools to provide powerful cutting power.

Model	FTHS-T-800	FTHS-T-1000	FTHS-T-1200	FTHS-T-1300
Voltage	as per request
Cutting Chamber L*W(mm)	804*680	1004*680	1204*920	1304*920
Blade Diameter（mm）	450
Equipment Dimensions LWH(mm)	335030103050	380030103100	501030104100	512030104100
Equipment Weight(kg)	5700	7000	16500	18500
Hopper Opening LWH(mm)	11501300800	13001400700	18501650900	205016501000
Final Product(mm)	50

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
