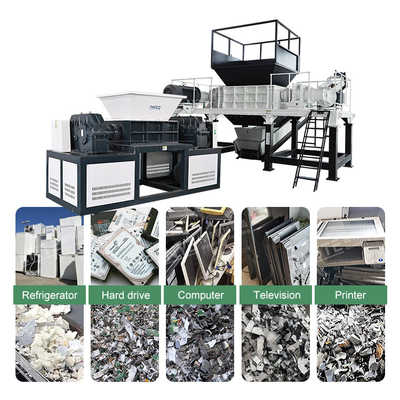

Name: Double Shaft Shredder for Phones Computers Routers Printer Shells and Mixed Electronic Waste
Brand: Nanjing Fante Machinery Manufacture Co., Ltd.
Availability: InStock

Home Products E-Waste Shredder

Double Shaft Shredder for Phones Computers Routers Printer Shells and Mixed Electronic Waste

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	FANTE

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Gear	Warranty:	1 Year
Material / Metal Processed:	Brass / Copper, Carbon Steel	Power (kw):	80
Weight (kg):	3000	Key Selling Points:	High Safety Level, Competitive Price, High Productivity, Long Service Life
Application:	Recycle Waste Metal	Name:	Shredder
Usage:	Waste Metal	Warranty:	12 Months
Color:	Client's Requirements	Crushing Material:	Types Waste Metal
Blades Material:	9CrSi/D2/SKD-11/ Customized	Other Name:	Double Shaft Plastic Shredder
Final Product:	1-10 Cm	Function:	Shredding Metal

◼︎ The equipment is made up of two blades on two shafts that cut each other to meet the requirements of shredding materials. The size of the shredded material is related to the thickness and number of teeth of the shredded blade. The thinner the blade, the smaller the size of the shredded material. The more teeth the blade has, the shorter the length of the shredded material. ◼︎ The device adopts a low speed and high torque design, which has the characteristics of high shear force, good tearing effect, low noise, and good stability.

Model	FTHS-600	FTHS-1000	FTHS-1200	FTHS-1600	FTHS-1800	FTHS-2000
Power(kw)	11-15	30-75	37-150	150-264	150-220	150-500
Breaking chamber length(mm)	600	1000	1200	1600	1800	2000
Blade Size(mm)	⌀300-⌀800
Reducer	ZSY Or Planetary reducer

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.

Model	FTHS-600	FTHS-1000	FTHS-1200	FTHS-1600	FTHS-1800	FTHS-2000
Power(kw)	11-15	30-75	37-150	150-264	150-220	150-500
Breaking chamber length(mm)	600	1000	1200	1600	1800	2000
Blade Size(mm)	⌀300-⌀800
Reducer	ZSY Or Planetary reducer

01.Chamber

02.Shaft and Blade

03.Bearing seal

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
